SRA Power Supply | SymphoniePRO
DETAILS

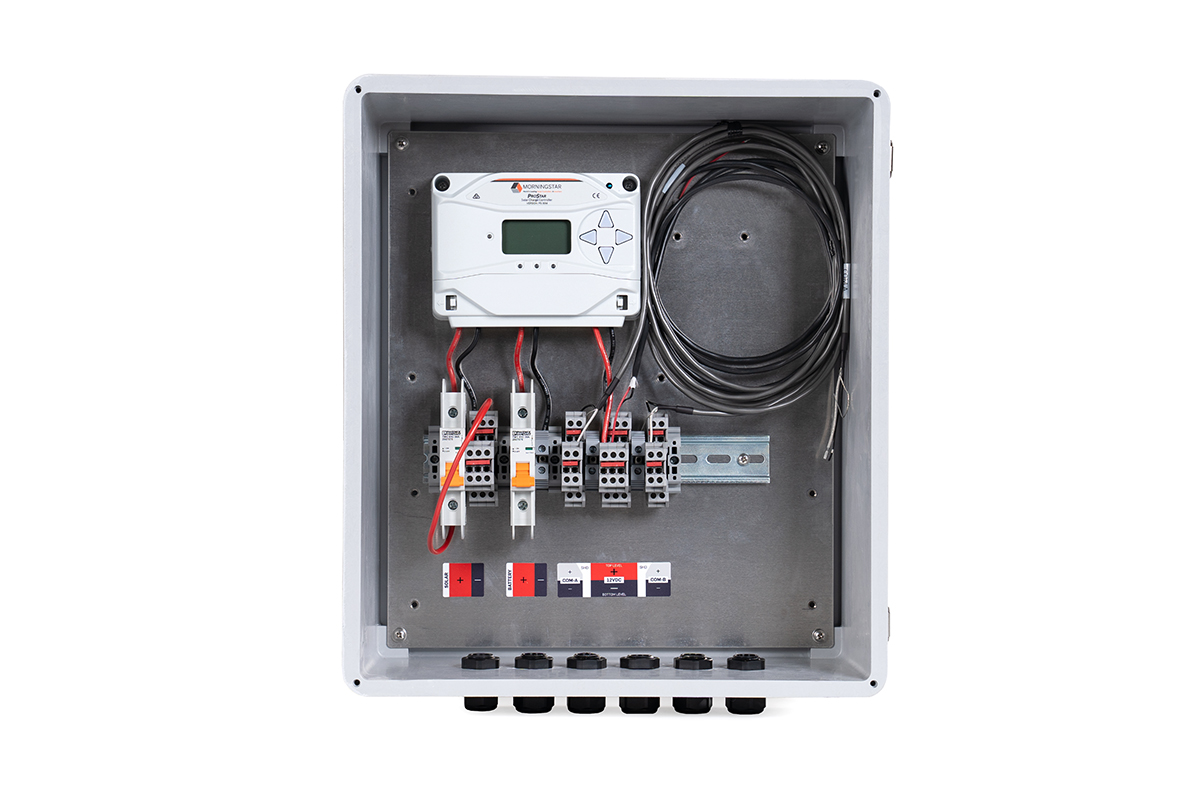

NRG’s specialized SRA Power Supply | SymphoniePRO is designed to meet the unique needs of solar resource assessment applications, providing reliable DC power for sensors, SymphoniePRO Data Loggers, and other equipment. This power supply is engineered to optimize your pre-construction endeavors with unwavering reliability and performance, including in harsh environments.
Our DC-only SRA Power Supply with PV input is available with an additional 24V option and can be configured with different battery and PV kit options (see below) to tailer the system to your unique project, scaling the battery bank to meet a range of requirements.
PV Kit options include:
- One 100W PV module with PV support brackets
- Two 100W PV [200W total] module with PV support brackets
- Three 100W PV [300W total] module with PV support brackets
Battery Kit options include:
- One 100 Ah battery bank
- Two 100 Ah batteries for a 216 Ah battery bank
- Three 100 Ah batteries for a 324 Ah battery bank
Benefits
- Highly configurable design allows for easy expansion and customization
- Reliable power to data logger, sensors, and additional peripherals ensures uninterrupted data collection
- Durable design offers long-lasting performance and reliability in all climates, ensuring critical systems remain powered
- Mounting options enable quick setup, minimizing downtime and simplifying deployment
SPECIFICATION
| ELECTRONICS (#14413) | ELECTRONICS, 24V (#16507) | |
|---|---|---|
| Description | ||
| Applications | Power supply for supplemental 12V power for digital sensors and data logger in SRA applications. Provides a DC remote power supply (RPS) with flexible scaling to meet autonomy specifications. | Power supply for supplemental 12V/24V power for digital sensors and data logger in SRA applications. Provides a DC remote power supply (RPS) with flexible scaling to meet autonomy specifications. |
| Compatability | SymphoniePRO Data Logger | SymphoniePRO Data Logger |
| Power requirements | ||
| PV Input | 1 or 2 100W PV Modules (60 VOC max) | 1 or 2 100W PV Modules (60VOC max) |
| Battery Input | 12 VDC Battery Bank | Flexible in Size | 12 VDC Battery Bank | Flexible in Size |
| Power Outputs | ||
| Output Voltage | 12 VDC | 12 VDC and 24 VDC |
| Max Load Current | 30 A @ 12V | 30 A @1 2V, 2.1 A @ 24V |
| Installation | ||
| Mounting | Shelter Box Mounts with 2x Hose Clamps | Shelter Box Mounts with 2x Hose Clamps |
| Tools required | Nut driver 5/16", small flat blade screwdriver, Philips screwdriver | Nut driver 5/16", small flat blade screwdriver, Philips screwdriver |
| Cord Grips | 1x 1628 3x 12870 2x 15364 2x 17742 |
1x 1628 3x 12870 2x 15364 2x 17742 |
| Cables | 2x 6ft 2C+1 - COM A/B1x 6ft 2C - 12VDC Supply1x Battery cable | 2x 6ft 2C+1 - COM A/B1x 6ft 2C - 12VDC Supply1x Battery cable |
| Accessories | Battery Kits / PV Kits / Tower Mounted Battery Bracket | Battery Kits / PV Kits / Tower Mounted Battery Bracket |
| Environmental Specifications | ||
| Operating Temperature Range | -40C to 60C ( -40F to 140F) | -40C to 60C ( -40F to 140F) |
| Operating Humidity Range | 0 to 100% RH | 5 to 95% RH |
| Ingres Protection | IP 65 | IP 65 |
| Physical | ||
| Weight | 20 lbs | 21 lbs |
| Dimensions | Height - 17.43" Width - 15.43" Depth - 7.34" |
Height - 17.43" Width - 15.43" Depth - 7.34" |
| Materials | ||
| Enclosure | Fiberglass Reinforced Polyester | Fiberglass Reinforced Polyester |
| Mounting Hardware | Stainless Steel Brackets and Hose Clamps | Stainless Steel Brackets and Hose Clamps |
